Quote:
Originally Posted by rixcj View Post
Do you, or anyone you know have a brake? I've gotten some nice radius bends using a brake (bumping). The closer the bending increments are, the smoother the transition. Even at 1/2" apart, the bend will be pretty smooth.

Rich

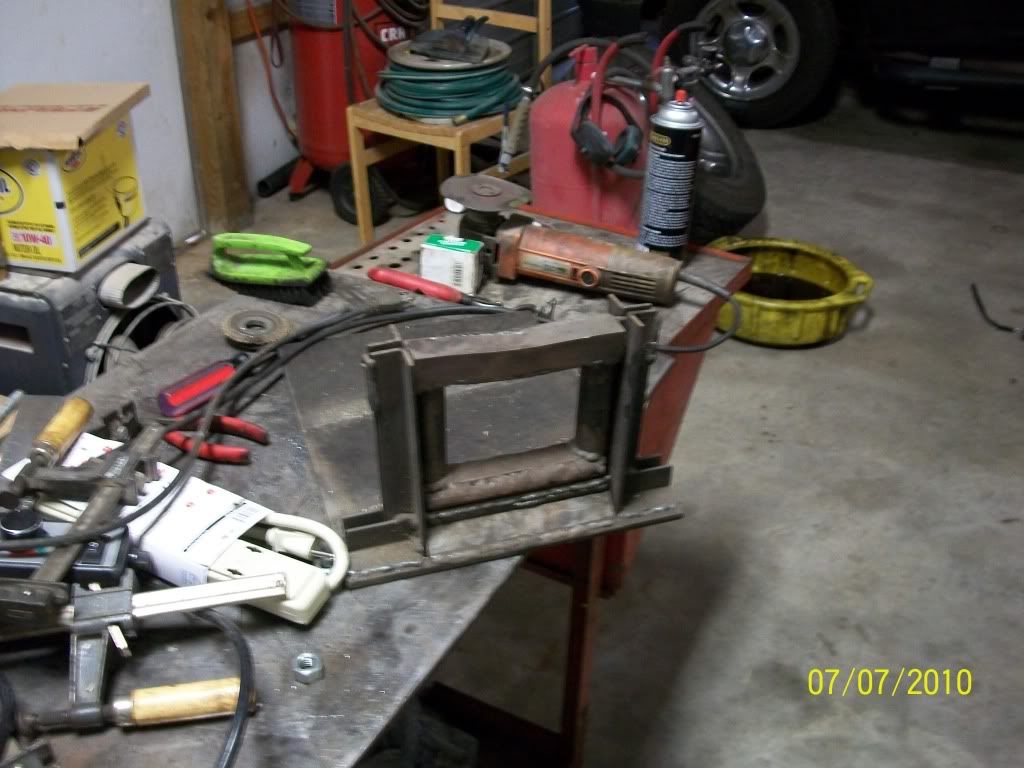

it would have to be a big one to do 1/8" plate but yea that is a very good idea! I built a small heavy duty press brake to bend 1/8" plate for link brackets up to 5" wide that would work in my little 12ton press

[IMG][/IMG]
Reply With Quote
  #22
Old 11-02-2011, 05:28 PM
TheBandit's Avatar
TheBandit TheBandit is offline
Instagram @chevyhotrodder

Join Date: Jan 2006
Location: Ventura County CA
Posts: 4,650
I have a press brake and could possibly fit a few bends in that space, though I don't think I could get them close enough together to make it look like a smooth radius. A cornice brake would be better suited to that, but I don't have one.

Quote:
Originally Posted by josh hennen View Post
see you said it yourself here!
I can't help myself. The damn engineer in me is coming out again.

Quote:
Originally Posted by FrogDog View Post
also, your idea probably will work as per drawing' .. but your wiper die should be round and roll/spin at same time .. not square and stationary...
I think that would be an improvement, but I don't think it's necessary. The flat edge of the square tube could leave scratches, but they would be on the hidden surface and I could probably prevent them with lube. I think a fixed round tube could be even worse because the force of bending would be spread over a line of contact; it seems to me like having a little more contact area would be better, though I'll happily admit I have no idea.

I kinda want to try this just to try it. I can't explain why.
__________________
Clint

Ongoing 70 Nova build: http://www.offroadfabnet.com/forums/...ead.php?t=8160
Reply With Quote
  #23
Old 11-02-2011, 07:51 PM
FrogDog's Avatar
FrogDog FrogDog is offline
Master Fabricator

Join Date: Dec 2007
Location: Maple Ridge, B.C. Canada
Posts: 3,152
Quote:
Originally Posted by TheBandit View Post
..I kinda want to try this just to try it. I can't explain why.
No explaination needed.. I feel the pain... LOL... I to have to make things to make things all the time..


r'z

Dog......
__________________
'Dog' is Never Wrong, Only Mistakin'
FrogDog FabWorx
Reply With Quote
  #24
Old 11-02-2011, 08:03 PM
FrogDog's Avatar
FrogDog FrogDog is offline
Master Fabricator

Join Date: Dec 2007
Location: Maple Ridge, B.C. Canada
Posts: 3,152
Quote:
Originally Posted by rixcj View Post
Do you, or anyone you know have a brake? I've gotten some nice radius bends using a brake (bumping). The closer the bending increments are, the smoother the transition. Even at 1/2" apart, the bend will be pretty smooth.

Rich
I agree.. I have done this method in shop small stuff with just a small press, couple angle iron jigs .. also farmed out some for them special needed projects... works very well..


Cheer'z

Dog........
__________________
'Dog' is Never Wrong, Only Mistakin'
FrogDog FabWorx
Reply With Quote
  #25
Old 11-02-2011, 08:08 PM
curtrnev's Avatar
curtrnev curtrnev is offline
Master Fabricator

Join Date: Jul 2006
Posts: 174
It would take two people and a smoothe surface, tack the plate to the pipe and then heat the plate and roll it out like grandma's biscuts.
Reply With Quote
  #26
Old 11-07-2011, 04:42 PM
TheBandit's Avatar
TheBandit TheBandit is offline
Instagram @chevyhotrodder

Join Date: Jan 2006
Location: Ventura County CA
Posts: 4,650
I am a dork.

Went out to the garage over the weekend and bent a piece of 1/8" x 6" wide mildsteel around the 3-1/2" diameter pole cold using a c-clamp and my sissy arm man strength. It bent with little noticeable springback - I just had to bear down and bend it. Traction on my Newbalance 10.5s was a bit of an issue, but I don't think 1/8" x 3-1/2" will present any difficulty. I do want to weld something like the "u-strap" to the pole, but otherwise this should be cake.

Another lesson in KISS.
__________________
Clint

Ongoing 70 Nova build: http://www.offroadfabnet.com/forums/...ead.php?t=8160
Reply With Quote
  #27
Old 11-21-2011, 02:21 AM
TheBandit's Avatar
TheBandit TheBandit is offline
Instagram @chevyhotrodder

Join Date: Jan 2006
Location: Ventura County CA
Posts: 4,650
I finally decided to try my hand at bending plate around a pole to get a nice radius. For a makeshift tool, I used a piece of 1-1/2 x 1/2 steel bar that I think used to be a finger for an engine stand. It has a hole at each end. I used some bolts through those holes as spacers, then clamped it with woodworkers clamps to a 3-1/2" OD pole set into the concrete in my garage.



I used a digital angle finder to match the angle of the "strap" with the angle of the pole.



Then I inserted a piece of 3-1/2" wide 12 gauge steel and carefully bent it by hand to the desired angle. Prior to bending I made sure the piece was perpendicular to the pole using the same angle finder.







The resulting part has a nice smooth radius and will make a nice bottom corner to my frame notch. I will make one for each side.



Thanks to everyone who told me to stop over thinking this!
__________________
Clint

Ongoing 70 Nova build: http://www.offroadfabnet.com/forums/...ead.php?t=8160

Last edited by TheBandit; 11-21-2011 at 06:27 PM.
Reply With Quote
  #28
Old 11-21-2011, 08:17 PM
FrogDog's Avatar
FrogDog FrogDog is offline
Master Fabricator

Join Date: Dec 2007
Location: Maple Ridge, B.C. Canada
Posts: 3,152
I knew that schooling would come in handy one day.....





Dog....................
__________________
'Dog' is Never Wrong, Only Mistakin'
FrogDog FabWorx
Reply With Quote
  #29
Old 11-21-2011, 11:01 PM
TheBandit's Avatar
TheBandit TheBandit is offline
Instagram @chevyhotrodder

Join Date: Jan 2006
Location: Ventura County CA
Posts: 4,650
Quote:
Originally Posted by FrogDog View Post
I knew that schooling would come in handy one day.....





Dog....................
I'm slowly being OFNducated in the art and science of being practical. In the end I used what I had laying around with good results.
__________________
Clint

Ongoing 70 Nova build: http://www.offroadfabnet.com/forums/...ead.php?t=8160
Reply With Quote
  #30
Old 11-22-2011, 11:40 AM
Graham08's Avatar
Graham08 Graham08 is offline
Master Fabricator

Join Date: May 2006
Location: Iron Station, NC
Posts: 1,800
"We have done so much with so little for so long, we can now do anything with nothing."

Nice work!
Reply With Quote
