  #1
Old 11-09-2006, 11:27 PM
B-Rad's Avatar
B-Rad B-Rad is offline
Master Fabricator

Join Date: Aug 2004
Location: Benicia,CA
Posts: 525
Make a believer out of me

Guy sent me this drawing to go in his GMC van........dont ask. Is this something I could plug into bend tech and figure out where my bends need to be? 1.5" tube, 6" CLR die
Attached Thumbnails
Click image for larger version

Name:	gmc van main hoop.jpg
Views:	50
Size:	44.2 KB
ID:	1078
Reply With Quote
  #2
Old 11-10-2006, 12:00 AM
fabcam's Avatar
fabcam fabcam is offline
Site Admin

Join Date: Aug 2004
Location: MN
Posts: 4,292
The answer is yes. A couple of the numbers need to be back figured:

If this is something you want me to do to get you the right numbers, then I need you to find the CLR, Calibrated CLR and the Bend Location Offset from the following pdf file:

http://www.2020softwaresolutions.com...ation_0611.pdf

I think the part should be 4 bends (the print looks like maybe 5). Is this correct?

Please give me hard numbers. Not min and max numbers.
__________________
The Designers of Bend-Tech Products
www.2020ssi.com
bend-tech support forum:
http://www.2020softwaresolutions.com/cmps_index.php

Cris
Phone: 651-257-8715
support@bend-tech.com


Reply With Quote
  #3
Old 11-10-2006, 12:07 AM
B-Rad's Avatar
B-Rad B-Rad is offline
Master Fabricator

Join Date: Aug 2004
Location: Benicia,CA
Posts: 525
Ill find out that stuff about my die this weekend and get back to you. I think I found a free computer so the software is the next buy
Reply With Quote
  #4
Old 11-10-2006, 12:17 AM
fabcam's Avatar
fabcam fabcam is offline
Site Admin

Join Date: Aug 2004
Location: MN
Posts: 4,292

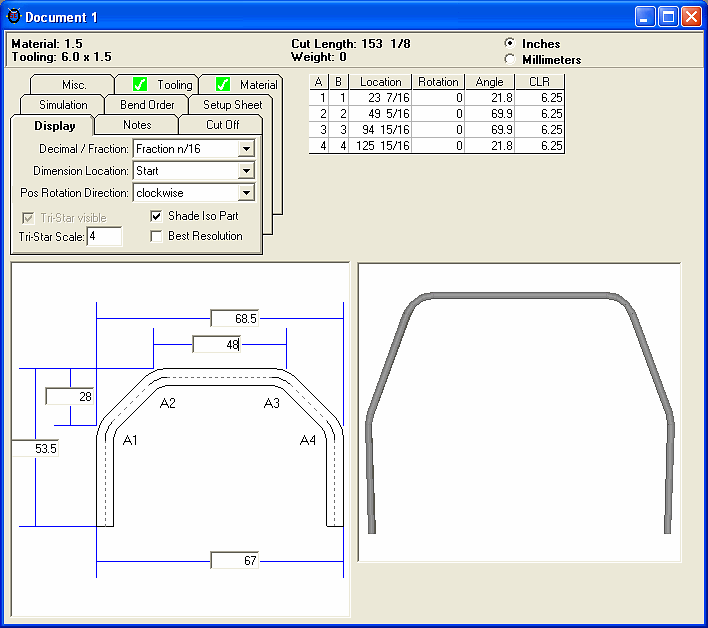

If you are using a Model 3 or a 105, read the above calibration doc and go to step 5 to make sure which way to put the tubing in. Line the Location marks in the following pic with the front edge of your die (not the strap or screw). I reduced the 69 to 68.5 and increased the 53 to 53.5 to meet the min/max issues.

The cut length is at the top of the screen.
You will find the mark locations under that.
The angles are the angles of bend after the tube is out of the bender (you account for your spring back).

I did an educated guess on your tooling calibration, however, I have been known to be getting pretty good at this.

I have no idea what the run of 5 and rise of 3 is for in your print in the upper right hand corner.

__________________
The Designers of Bend-Tech Products
www.2020ssi.com
bend-tech support forum:
http://www.2020softwaresolutions.com/cmps_index.php

Cris
Phone: 651-257-8715
support@bend-tech.com


Reply With Quote
  #5
Old 11-10-2006, 12:21 AM
ScooteK's Avatar
ScooteK ScooteK is offline
Master Fabricator

Join Date: Apr 2006
Location: Placentia Ca.
Posts: 1,288
Quote:
Originally Posted by fabcam
If you are using a Model 3 or a 105, read the above calibration doc and go to step 5 to make sure which way to put the tubing in. Line the Location marks in the following pic with the front edge of your die (not the strap or screw). I reduced the 69 to 68.5 and increased the 53 to 53.5 to meet the min/max issues.

The cut length is at the top of the screen.
You will find the mark locations under that.
The angles are the angles of bend after the tube is out of the bender (you account for your spring back).

I did an educated guess on your tooling calibration, however, I have been known to be getting pretty good at this.

I have no idea what the run of 5 and rise of 3 is for in your print in the upper right hand corner.


YEAH WHAT HE SAID!
Reply With Quote
  #6
Old 11-10-2006, 12:28 AM
fabcam's Avatar
fabcam fabcam is offline
Site Admin

Join Date: Aug 2004
Location: MN
Posts: 4,292
Quote:
Originally Posted by scootek
YEAH WHAT HE SAID!
You like that?


I used a CLR of 6.25, a Cal of 6.875 and an offset of -.75

cross my fingers and he should have a pretty good part. This is guess work because the calibration isn't done.
__________________
The Designers of Bend-Tech Products
www.2020ssi.com
bend-tech support forum:
http://www.2020softwaresolutions.com/cmps_index.php

Cris
Phone: 651-257-8715
support@bend-tech.com


Reply With Quote
  #7
Old 11-10-2006, 12:28 AM
B-Rad's Avatar
B-Rad B-Rad is offline
Master Fabricator

Join Date: Aug 2004
Location: Benicia,CA
Posts: 525
the top right is different then the left. It has to clear the sliding door thingy.
I would *guess* that he meant 5" from the beginning of the bend to the outside of the down tube but it kinda looks like it has to clear a 5x3 box or something. Not the best drawing but better than some Ive gotten from people
Reply With Quote
  #8
Old 11-10-2006, 12:32 AM
fabcam's Avatar
fabcam fabcam is offline
Site Admin

Join Date: Aug 2004
Location: MN
Posts: 4,292
Quote:
Originally Posted by B-Rad
the top right is different then the left. It has to clear the sliding door thingy.
I would *guess* that he meant 5" from the beginning of the bend to the outside of the down tube but it kinda looks like it has to clear a 5x3 box or something. Not the best drawing but better than some Ive gotten from people
There is no way they would know where the beginning of the bend would be. I think you need to get a better definition. At this point if the part doesn't fit because you don't understand their print, YOU are going to be the one to eat the part.

As sure as you get something I dare work off of, I am sure we can get something figured out.
__________________
The Designers of Bend-Tech Products
www.2020ssi.com
bend-tech support forum:
http://www.2020softwaresolutions.com/cmps_index.php

Cris
Phone: 651-257-8715
support@bend-tech.com


Reply With Quote
  #9
Old 11-10-2006, 12:40 AM
ScooteK's Avatar
ScooteK ScooteK is offline
Master Fabricator

Join Date: Apr 2006
Location: Placentia Ca.
Posts: 1,288
Quote:
Originally Posted by fabcam
You like that?


I used a CLR of 6.25, a Cal of 6.875 and an offset of -.75

cross my fingers and he should have a pretty good part. This is guess work because the calibration isn't done.
I enjoy your knowlege.
Reply With Quote
  #10
Old 11-10-2006, 12:46 AM
B-Rad's Avatar
B-Rad B-Rad is offline
Master Fabricator

Join Date: Aug 2004
Location: Benicia,CA
Posts: 525
Quote:
Originally Posted by fabcam
There is no way they would know where the beginning of the bend would be. I think you need to get a better definition. At this point if the part doesn't fit because you don't understand their print, YOU are going to be the one to eat the part.

As sure as you get something I dare work off of, I am sure we can get something figured out.
Not making anything at this point. Dude is a weird guy, can tell just from the way he types. Just trying to get myself to pony up for the software.
Reply With Quote
  #11
Old 11-10-2006, 12:49 AM
fabcam's Avatar
fabcam fabcam is offline
Site Admin

Join Date: Aug 2004
Location: MN
Posts: 4,292
Quote:
Originally Posted by B-Rad
Not making anything at this point. Dude is a weird guy, can tell just from the way he types. Just trying to get myself to pony up for the software.
Got ya. Wew, I was afraid I was going to need to sober up this evening and design a part.

Sheesh, I can give you about 125 reasons to pony up if you are interested.
__________________
The Designers of Bend-Tech Products
www.2020ssi.com
bend-tech support forum:
http://www.2020softwaresolutions.com/cmps_index.php

Cris
Phone: 651-257-8715
support@bend-tech.com


Reply With Quote
  #12
Old 11-10-2006, 02:00 AM
TheBandit's Avatar
TheBandit TheBandit is offline
Theoretical Fabricator

Join Date: Jan 2006
Location: Oxnard CA
Posts: 3,445
B-Rad what the heck are you waiting for?
__________________
Clint
Cancer Survivor Since 10/06 - Hear me speak: https://www.youtube.com/watch?v=LUDZ-gMfiAU
Reply With Quote
  #13
Old 11-10-2006, 02:01 AM
Rock4XFab's Avatar
Rock4XFab Rock4XFab is offline
Moderator

Join Date: Aug 2004
Location: Illinois/Wisc border Name Scott Yach
Posts: 2,094
Reason #126


This guy didnt have software to bend a cage....
































__________________
I was not born in the DARK...........................................I had a torch in my Hand


http://rock4xfabrication.com
1-847-672-9653
1-847-544-1823
Reply With Quote
  #14
Old 11-10-2006, 02:13 AM
B-Rad's Avatar
B-Rad B-Rad is offline
Master Fabricator

Join Date: Aug 2004
Location: Benicia,CA
Posts: 525
ok how do i buy bt pro?
Reply With Quote
  #15
Old 11-10-2006, 02:58 AM
Rock4XFab's Avatar
Rock4XFab Rock4XFab is offline
Moderator

Join Date: Aug 2004
Location: Illinois/Wisc border Name Scott Yach
Posts: 2,094
Oh Chris ATTENTION Chris.... better jump before I steel your sale...
__________________
I was not born in the DARK...........................................I had a torch in my Hand


http://rock4xfabrication.com
1-847-672-9653
1-847-544-1823
Reply With Quote
  #16
Old 11-10-2006, 09:09 AM
fabcam's Avatar
fabcam fabcam is offline
Site Admin

Join Date: Aug 2004
Location: MN
Posts: 4,292
Quote:
Originally Posted by B-Rad
ok how do i buy bt pro?

Call me and I will get you set... 1.651.257.8715


Cris
__________________
The Designers of Bend-Tech Products
www.2020ssi.com
bend-tech support forum:
http://www.2020softwaresolutions.com/cmps_index.php

Cris
Phone: 651-257-8715
support@bend-tech.com


Reply With Quote
  #17
Old 11-10-2006, 10:15 PM
B-Rad's Avatar
B-Rad B-Rad is offline
Master Fabricator

Join Date: Aug 2004
Location: Benicia,CA
Posts: 525
Thanks again Cris :)
Reply With Quote
  #18
Old 11-10-2006, 10:41 PM
Rock4XFab's Avatar
Rock4XFab Rock4XFab is offline
Moderator

Join Date: Aug 2004
Location: Illinois/Wisc border Name Scott Yach
Posts: 2,094
Quote:
Originally Posted by Rock4XFab
Reason #126


This guy didnt have software to bend a cage....


BTW no one was hurt in the making of this sales tool LOL
