My 2-seat long travel buggy

Here are some pics ig by 2-seater build!

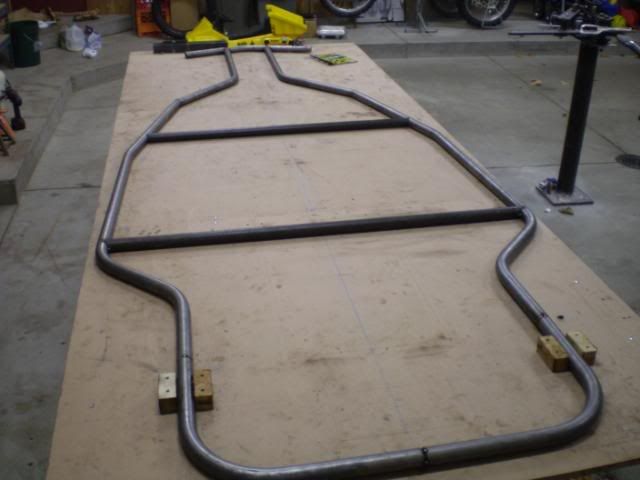

The mid rail

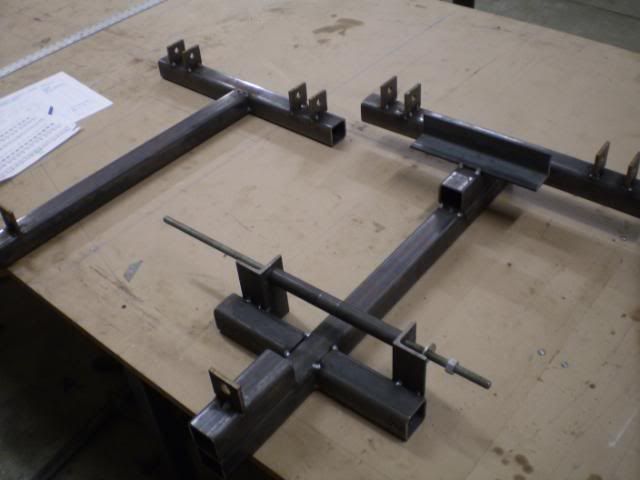

The front a-arm jigs

The mid, and lower rail coming together.




The RPM f.n.r.


The Fox coilovers.


The trailing arms @ 8 hours a piece.


More to come!

Justin

Last edited by deranged; 04-12-2010 at 10:24 PM.
Reply With Quote
  #2
Old 04-12-2010, 10:21 PM
deranged's Avatar
deranged deranged is offline
Fabricator

Join Date: Apr 2010
Location: Allendale Michigan
Posts: 75
ok pic FAIL, let me try this again..
Reply With Quote
  #3
Old 04-12-2010, 10:32 PM
deranged's Avatar
deranged deranged is offline
Fabricator

Join Date: Apr 2010
Location: Allendale Michigan
Posts: 75
My steering rack, and a plate I water jetted to mount it.

Trailing arms just sitting there.


Now your getting the idea.


The front.

I am working on the front uprights tomorrow. As for the hubs, I am using Proto-Die's hubs, and water jetting out my rotors. They are 11" in dia. I am rinning Willwood Dynalight twin piston calipers to slpw it down. Enough computer time.....back to work LOL

Justin.
Reply With Quote
  #4
Old 04-12-2010, 10:47 PM
pyro1994's Avatar
pyro1994 pyro1994 is offline
Fabricator

Join Date: Jan 2007
Location: wisconsin
Posts: 29
I think I am gonna like this one. Are you using some type of bought plans or is it all past experience and your brain?
Reply With Quote
  #5
Old 04-12-2010, 10:53 PM
deranged's Avatar
deranged deranged is offline
Fabricator

Join Date: Apr 2010
Location: Allendale Michigan
Posts: 75
Hey pyro, I bought the plans from here.. http://www.rorty-design.com/content/...gun_manual.htm It is sooo detailed. The plans have a full material list, and really good drawings!
Reply With Quote
  #6
Old 04-13-2010, 10:32 AM
Sarcastro's Avatar
Sarcastro Sarcastro is offline
Master Fabricator

Join Date: Jan 2009
Posts: 504
awesome!
Reply With Quote
  #7
Old 04-13-2010, 11:55 AM
Ukraine Train's Avatar
Ukraine Train Ukraine Train is offline
Fabricator

Join Date: Nov 2007
Location: cleveland
Posts: 54
Looking great! What are you using for an engine?
Reply With Quote
  #8
Old 04-13-2010, 11:58 AM
deranged's Avatar
deranged deranged is offline
Fabricator

Join Date: Apr 2010
Location: Allendale Michigan
Posts: 75
Thanks guys! The motor is a 2005 EFI, CBR 1000rr 6 speed, with a power programer, and a Yosh. slip on pipe. The gear box has a reduction of 5.4:1, with 30" tall tires, so it should be kinda quick.

Justin
Reply With Quote
  #9
Old 04-13-2010, 01:44 PM
Sarcastro's Avatar
Sarcastro Sarcastro is offline
Master Fabricator

Join Date: Jan 2009
Posts: 504
so with the F'NR' youve got 6 speeds forward and reverse?
Reply With Quote
  #10
Old 04-13-2010, 01:51 PM
AVTECH's Avatar
AVTECH AVTECH is offline
Master Fabricator

Join Date: Sep 2006
Location: Lexington, SC
Posts: 190
Looks like a fun little machine. Nice work!
Reply With Quote
  #11
Old 04-13-2010, 03:39 PM
deranged's Avatar
deranged deranged is offline
Fabricator

Join Date: Apr 2010
Location: Allendale Michigan
Posts: 75
Sarcastro, the RPM box only handles the gear reduction, and the foreward neautral, and reverse, but basiclly I will have 6 speeds in foreward, and reverse from the bike trans. and thanks AVTECH.

Justin.
Reply With Quote
  #12
Old 04-13-2010, 08:14 PM
cummins6speed's Avatar
cummins6speed cummins6speed is offline
Master Fabricator

Join Date: Dec 2008
Location: Petaluma/Vacaville/Sacramento, CA
Posts: 502
Subscribing
Reply With Quote
  #13
Old 04-13-2010, 09:16 PM
Wheels4's Avatar
Wheels4 Wheels4 is offline
Master Fabricator

Join Date: Mar 2009
Location: Birmingham Area, Alabama
Posts: 238
that's exactly what i'm wanting to do with my R1... nice work!!
Reply With Quote
  #14
Old 04-14-2010, 12:22 AM
Domino2205's Avatar
Domino2205 Domino2205 is offline
Master Fabricator

Join Date: Jun 2009
Location: SW Washington
Posts: 223
Quote:
Originally Posted by pyro1994 View Post
I think I am gonna like this one. Are you using some type of bought plans or is it all past experience and your brain?
these guys make a pretty good and detailed plan set tho its a single seater
http://www.desertkarts.com/

Dave
Reply With Quote
  #15
Old 04-14-2010, 10:40 PM
deranged's Avatar
deranged deranged is offline
Fabricator

Join Date: Apr 2010
Location: Allendale Michigan
Posts: 75
Well all I have done this week is weld at night after my son goes to bed. I DID however get my wheels and tires. Here are some more pics....

The wheels and tires.

One of 3 calipers.

The tie rods


One end has some slots milled into the rod for adjustment.


Just a shot from the front


The 4 wd S-10 front wheel bering assy, with the splined 930 flanges.


this is a silly comparison of the size of the rear trailing arms next to my CRF 450r



It SHOULD be a roller by next Thursday, so stay tuned!

Justin
Reply With Quote
  #16
Old 04-15-2010, 09:49 PM
etl45's Avatar
etl45 etl45 is offline
Junior Fabricator

Join Date: Feb 2010
Posts: 9
hurry up and get it done, i have a zx10 motor that needs to be in somothing besideds the corner!
Reply With Quote
  #17
Old 04-21-2010, 11:48 PM
Wheels4's Avatar
Wheels4 Wheels4 is offline
Master Fabricator

Join Date: Mar 2009
Location: Birmingham Area, Alabama
Posts: 238
any updates?
Reply With Quote
  #18
Old 04-23-2010, 08:49 AM
deranged's Avatar
deranged deranged is offline
Fabricator

Join Date: Apr 2010
Location: Allendale Michigan
Posts: 75
Well, I got the front uprights done, the rotors cut, the front calipers mounted, and more welding done on the frame. After a beer last night I bolted in the driver side front suspension. I was amazed at the ground clearance that it has. The frame is 27" off the ground, and there is still 2 more inches to go! So if the frame has 4" clearance at full bump, I will have 25" of bump steer free travel! The rear will be limited to the C/V joint angles, so the rear will be around 20".

Justin.
Reply With Quote
  #19
Old 04-28-2010, 10:44 PM
deranged's Avatar
deranged deranged is offline
Fabricator

Join Date: Apr 2010
Location: Allendale Michigan
Posts: 75
Well, we have a roller! The front is almost at full bump, and this thing is HUGE!










And this last one is just some fun on the job...we shrink wrapped our shipping, and receving guys chair up...LOL

Reply With Quote
