How to chop a Model A Ford Sedan

I know as fabricators this isnt a real challenge to most of us. But I thought there might be a beginner out there that might be interested in a project like this. Ive got picks of several different types of chops and vechicles if intrested PM me. Its true that the early 30's cars and earlyer are much easyer to chop than the later 40's, 50's, 60's and so on. the 30's era cars were very square. When the waste piece is removed from the center, the top fits up very well with the bottom. With all that said I will try to explain whats going on in these pics.

Before I chop any car I like to get a feel for how much I can take out and still function in the car. I get a seat bottom and set it right on the floor. Jump in and get a feel for the peddles, steering, shifter, ect. once I figure out how much I can get rid of, the game is on. I mark everything out with pencil. for this chop I took out 6". It was a little much for me, Im 6'. But my customer is in the 5'3" range, so removing 6" was fine for him. After penciling it in I use masking tape to define the waste material. I find the edge of the tape makes for a good contrast to follow with the sawsall or plasma cutter. I then take a few minutes to cross brace the inside with 1"x1" square tube. I dont get to weird about this, I just tack up the walls so they dont move while removing the roof.





After marking door posts A pillers, B pillers ect. some thought should be given to copping rear windows, window mouldings, and frames. Sometimes the windows get to small to be functional. If thats the case they just dont look right. Sometimes I cut out the rear window and reinsert it with a partial chop or in the stock height. This chop is straight foward and no extra work was done to the window. Its time to sawsall along the top of the masking tape seperating the top from the bottom.


Then cut along the bottom of the tape line. Its tempting to dumpster the part cut out, dont! Those little pieces can often times be used to patch, or fix mistakes. Not that Ive ever used them. LOL At this time it good to even all the welds up. with a straight edge I true up the uneven cuts, and use a die grinder with a 3" sanding disc to even out the cuts. in this case its pretty easy. Just set the top back on and tack it into place. I use a Millermatic 135 115 volt machine. I use E70S6 wire .025 dia. with C25 mig mix, or straight CO2. I dont do a continuous weld. I do a series of spot or tack welds. I space them out about an inch apart, and move around the car allowing the sopt to cool before welding next to it. After about 20 trips around the car spot welding the seam, its all fills in and apears to be one weld.

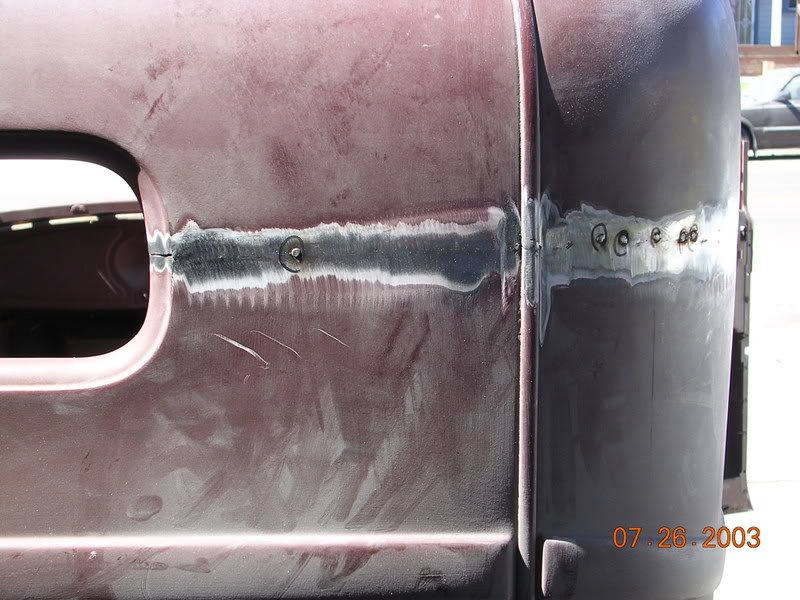

Using the same 3" sanding disc. I used earlyer, I then grind off all the excess weld on the ourside and inside of the car. Using this technique worpage is minimal. Where there is worping it is easy to move the metal around now with the hammer and dolly.



In this pic you can see how I sliced the inside of the window frame vertically. By spreding the narrower tophalf, and squizing the wider bottom half, it gives a consistant line and inside edge. I looks like its always been that way. The final attention to details like this is more important than the chop itself.


The door frames and window frames are very straight foward so I will spare you the boring details of that process. At this point you can cut out the cross bracing and finish up with glazing putty and primer.






I relize this is a very basic explination of the process, but with this group I think it should be Fine. feel free to PM me with any questions. Thanks Bob
